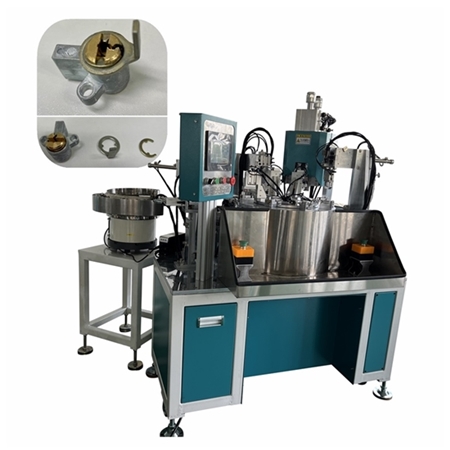

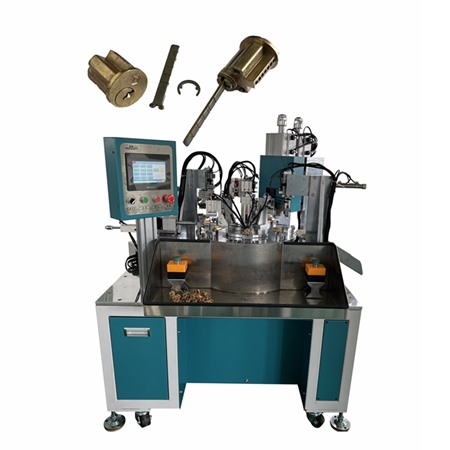

Lock cylinder master-ring assembly machine  to assembly  Seeger Ring and Steel Cam into the locks Cylinder(Locks master-ring assembly machine to assembly the Seeger Ring and Steel Cam into the Cylinder Assembly), Key cylinder locks and padlocks assembly machine to assembly clip Ring and Steel Cam

 Related products: custom made machine.

Description

1, The machine is customized to assembly lock cylinder, instead of manual assembly.
2, Manually put the cylinder in the fixture of the machine, automatically assembly seegar ring and steel cam. improve the production efficiency!
3, the use of PLC touch screen, intuitive interface, simple operation.
4, production set, automatic counting, can be 24 hours of continuous work.
5, humanized design, automatic counting.
6, failure automatic shutdown alarm, and display error message.

Efficiency: 15-20pcs/min
Power supply: AC220V single-phase 50-60HZ
Source: 0.8Mpa
Machine: 1450*1200*1550mm (L*W*H)
Discharge: the robot unloading
