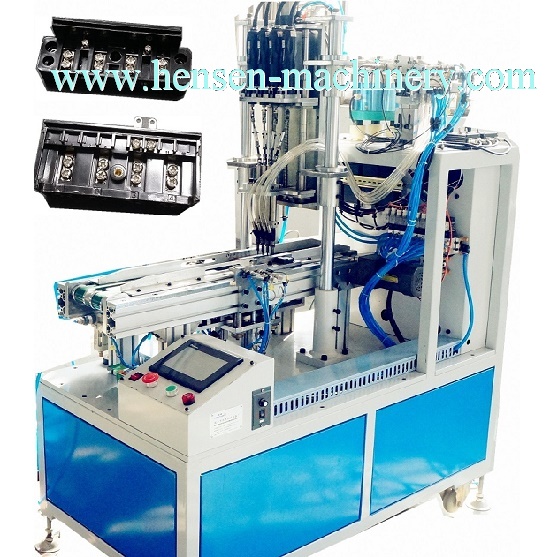

Automatic screwing machine for terminal block

1.  Basic parameters

Efficiency: 8 pcs/ 8 seconds

Power supply : 220V AC

Using gas source : 0.6MP

Warranty: 1 year

Production period: 45 days

Dimensions: Length 900 * W 700 * H 1700 (mm)

2. Technical parameters

Terminal board Feeding: belt line feed ( manual discharge terminal in belt line )

Screwdriver Quantity: 4

Screw adjustable space :0-50mm

Screwdriver Type: Kilews electric screwdriver ( Taiwan )

Screwdriver Torque :5-25kg ( torque adjustable )

Screwdriver head : 150mm GB rod

Send screw ways: 1 times sent four screws , pipe blowing style

Check the screw : slip teeth , floating locks, slick, miss lock

Screw Sharing: same tooth diameter and screw heads , different length screws thread

Terminal board Sharing: same screws , board width length and screw space adjustable

Screwing quantity : 8 below

Machine running video

https://youtu.be/pk3v9ln2Bxk
