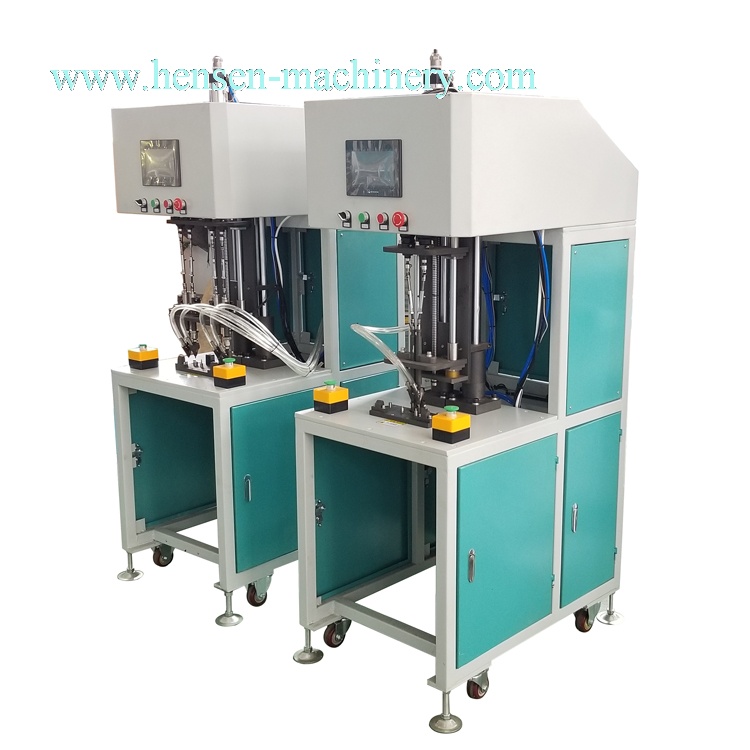

Multi head screwdriver machine

Technical Parameters

Efficiency: one product / 3.5-4 seconds
Power supply: 110V AC/220V AC (50Hz/60Hz)
Using air source :0.4-0 .8 Mp
Screw: M2-M5 (maximum length of 50mm)
driver: According to customer requirement
screwdriver torque: according to customer requirements (the machine is 0.3-1.9 Nm)
Fixture Exercise: Intermittent circumference divided
Product fixture: multiple sets
Electric screwdriver Brand: Taiwan Kilews (torque automatic clutch)
PLC: Mitsubishi
Touch screen: Panasonic
Pneumatic components: SMC or AirTAC
Dimensions: according to product design
Lock Screw Quantity: Max: 24
Inspection: Drain the slide lock lock slick floating teeth
Allowable failure rate: 0.1%
Discharge: Robot unloading

Advantages
1. The actual processing according to customer requirements with a single or multiple product lock screws.
2. lock screws can be flexible and change the number, when you need to do when the number is less than a preset number of screws, you only need the extra shielding lock screw mechanism on it.
3. on a machine by replacing the product will be able to fine-tune the fixture and doing other screws the same generic product.
4. When the screw spacing can be smaller when the universal joint - we can achieve the connection between screwdriver and screwdriver body, the minimum spacing can be done 18mm - electric screwdriver.
5. This type of machine can also remove the turntable, do a jig into and through artificial way to remove the products made Simple multi-axis machine lock screw.

6. Accordingto production needs,multi-axismachinelock screwassembly linecan also be directlyconnect with production line, as theonlinelock screw. However, toevaluatethe probability of successbased on customerproductionline.
