I. technical parameters

Efficiency:  20pcs/min

Screwing quantity: 2 pcs each time, in the mean time to assembly plastic clamp (customized)

Power supply: AC220V single-phase

Air Source: 0.6Mpa

Machine Dimension: 1600*1400*1650mm (L* W* H)

Controlling system: Siemens PLC+ touch screen

Discharge:  automatic loading and unloading

II. Description:

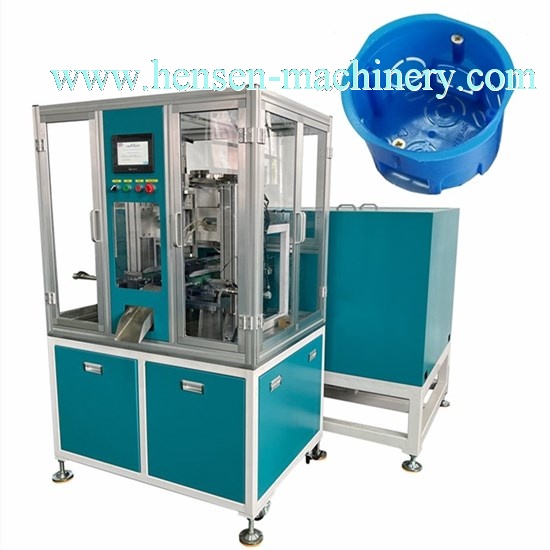

1. The machine is designed for plastic junction box (electric wire box) assembly, operator put each part into the vibrator bowl for automatic feeding, the machine will automatically assembly thescrew.

2. screw dropping with fiber check, guaranteed the number of screws.

3. With automatic clutch screw driver, when the screws arrive to the torque will automatically stop, can determine the locking screw sliding, floating and other defective products, and displayed on the touch screen.
