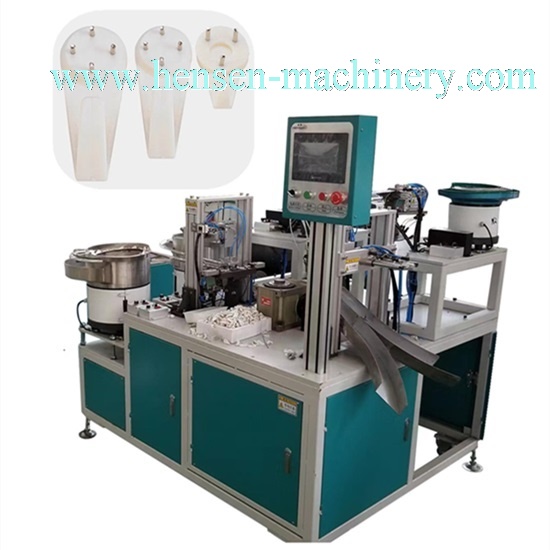

Automatic Hanging hook assembly machine
Product Description:
Automatic Hanging hook assembly machine, hook and nail/pin assembly machine
I. technical parameters
Efficiency: 20-40pcs/min (customized)
Function: automatic feeding and assembly hook and nail/pin, automatic discharging.
Power supply: AC220V single-phase
Air Source: 0.6Mpa
Machine Dimension: 14000*1200*1500mm (L* W* H)
Controlling system: Siemens PLC+ touch screen
II. Description:
1. this SPM machine is designed for inserting pin into hanging hooks, the material are loading and feeding by vibrator bowl, automatic assembly and automatic discharging.
2. automatic sorting the pin and hook with required orientation
3. Material feeding via fiber sensor check, guaranteed the number parts.
4. one worker can operate 3 to 5 machines
