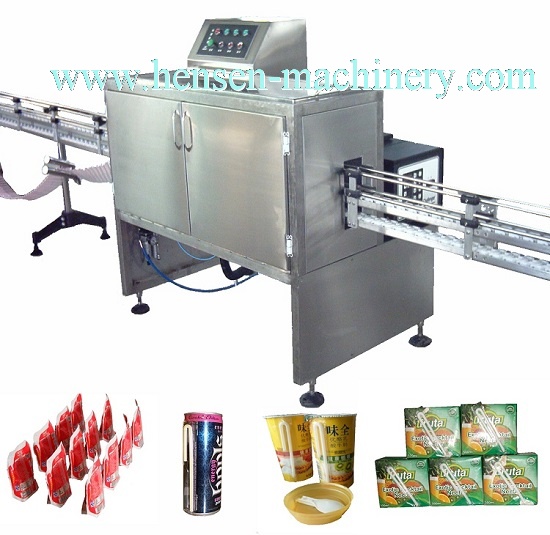

The drink straw applicator HENS-TB, it can stick the drink straw in a variety of drinks outer surface, to improve the packaging of beverage grade, and will be easy to use, it is particularly applicable to the surface of Tetra pak, brick cartons, plastic cups, plastic bottle and so on, adaptable to handle straight, U-type, or telescope straws. This machine adopts PLC control system can automatically transfer the finished product, straw transmission, straw cutting, products gluing, straws sticking and other processes. Operation more reliable and to meet international technical level of similar products. Suitable for aseptic paper box packaging with surface-bonded straw
2> Main technical parameters
Dimension 1220 × 860× 1300mm
Weight 300 kg
Voltage 380/220V
Frequency 60Hz
Power 4.5KW (maximum power)
Production:7000~9000 boxes / hour
Single line feeding method
Conveyor Belt Width 83mm
Working pressure 0.4-0.6Mpa
Maximum air consumption 100 liters / min
3> Machine component
Hot melt glue machine |
ITW Dynatec |
PLC |
Mitsubishi |
Electromagnetic valve |
Japan SMC |
Air cylinder |
Taiwan |
Shaft cover |
|
Separator Motor |
|
