Efficiency:  2-4 second/piece

Screwing quantity: 2 pcs per time, auto loading

Power supply: AC220V single-phase

Air Source: 0.6Mpa

Machine Dimension: 1200*1100*1300mm (L* W* H)

Weight: 260kgs

Control system： Siemens PLC+ Touchscreen

II. Description:

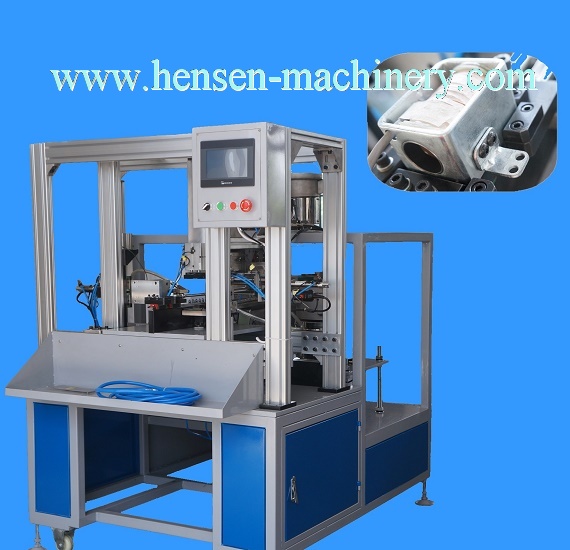

1. This machine is designed for assembly and screwing for sewing machine motor, screw and accessory parts was feed automatically by vibrator bowl, the product body need hand-placed.

2. screw dropping with fiber check, guaranteed the number of screws.

3. With automatic clutch screw driver, when the screws arrive to the torque will automatically stop, can determine the locking screw sliding, floating and other defective products, and displayed on the touch screen.

5. screw universal in the case of tooth size unchanged, different length is ok
