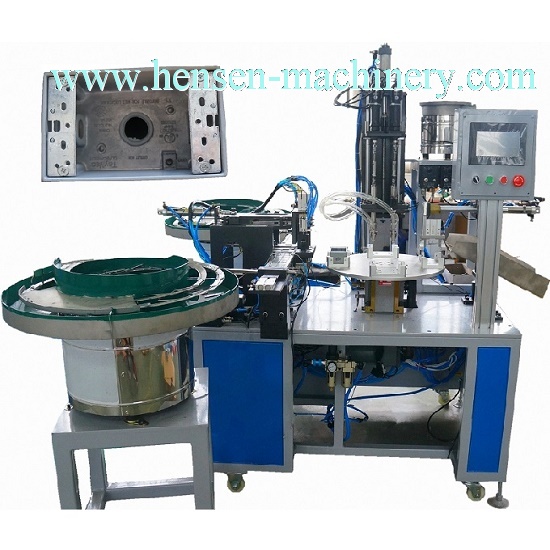

Screw Installing Machine for Electric Box

ENGLISH

Screw Installing Machine for Electric Box

	Name: Screw Installing Machine for Electric Box Model: HENS-SL4-C

Product Description:

Automatic assembly and screwdriver machine for electric parts

Machine running video

https://youtu.be/J9U9C7Ggwfw

I. Description

1. this machine is 4-station 4-axis turntable fixing screw machine, installed on the rotary table with 8 jig. Each turntable rotation to complete 2 product, each time feeding 4 pcs of screw.

2. screw dropping with fiber check, guaranteed the number of screws.

3. With automatic clutch screw driver, when the screws arrive to the torque will automatically stop, can determine the locking screw sliding, floating and other defective products, and displayed on the touch screen.

4. by replacing the fixture can be used for other models.

5. screw universal in the case of tooth size unchanged, different length is ok

6. Manual loading the product by worker, after fitting 4 pcs screw the robot discharge product.

II. technical parameter:

Main parameter Structure	Dimension	145012001300 (H* L* W )
	Power supply	AC 220V 50HZ 300W
	Air supply	0.6MPa
	Weight	460kgs
Structure	Disk-driver	Gear motor+ can splitter
	Rotary working	4 working station. 1 products/workstation
	Discharge	Manipulator unloading
Control system	Host control	Siemens PLC + Touch screen
Efficiency	Screwing speed	20-30pcs/min
Screwdriver	Screwing number	4 pcs (1-16 axes optional)
Screwdriver	Torque	Adjustable
Screw	Specification	M1.2-M6.0,Cross, triangle and so on
Detection	Screw slip, screw omit screwing
Detection	Displayed on the touch screen
