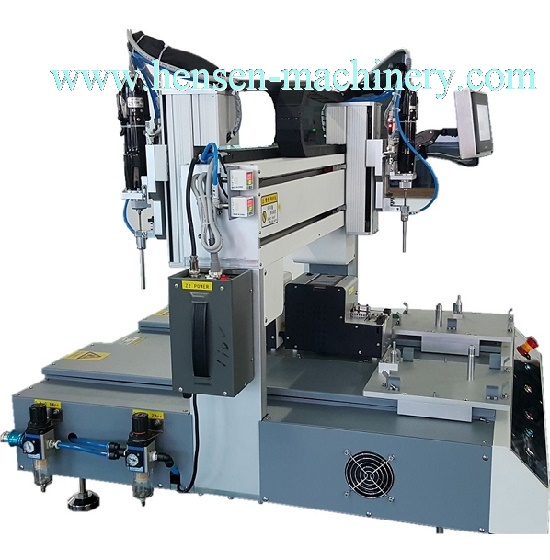

XYZ desktop screw driving machine HS-S22C

I. Description
1. Double screwdriver head, double platform, suitable for 2 different type screw in one product.
2. technical parameter:

Applicable screw	Screw thread	M1.0-M8.0mm
	Screw shape	Mechanical or self tapping
	Screw head shape	Cross, Y shape, Hexagon, Pentagon, Triangle and so on
Equipment parameter	Power supply	AC220V  50HZ   800W
	Air supply	0.4Mpa
	Dimension	930*650* 700mm (L*W *H)/ customization
	Effective stroke	180*300* 60mm (X*Y *Z)/ customization
	Weight	100kgs
Control instructions	Operation mode	PLC+ Touch screen
	Programs enter	Coordinates directly enter
	Drive mode	stepper motor/servo motor
	Program storage	100 group， 100/pack
	Communication port	USB
Speed and precision	Positioning accuracy	X、Y、Z ±0.02mm
	Speed	500mm/1sec
Screw feed	Feeding method	blowing/suction type（customized ）
	Screw quantity	According to screwing requirement
Screwdriver	Kilews	Optional according to customer requirement
	Z axis screwdriver	Optional, generally no more than 2
Applicable range	X、Y Range	400mm(customized )
	Z screwing range	According to customer requirement
	Station	single/multi-station (customized)
Detection	Project	Slip, leak, miss and alarm

For different types of screws,  screw length should be longer than 1.3 times the screw head diameter. Screw length is not more than 40MM,screw with gasket is ok. The range of suitable products: digital, electronics, small appliances, LED, mobile phones, Tablet PCs, small precision electronic products and so on
